Flexible Composite Ferrite
Technology for Electromagnetic Shielding and Electronic Components

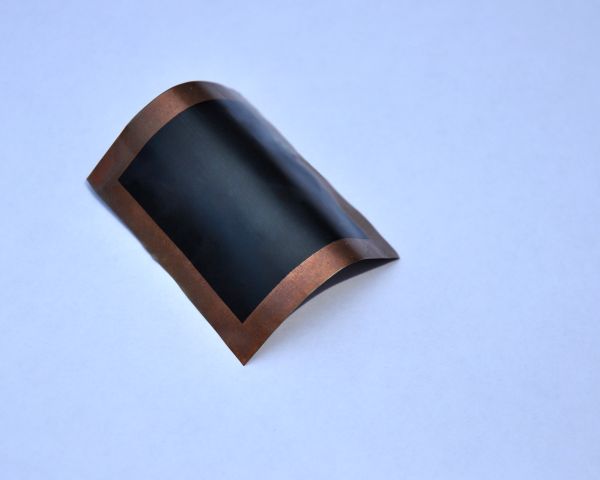

Powdertech’s Flexible Composite Ferrite delivers the functionality of a sintered ferrite with the flexibility of a film by utilizing aerosol deposition process technology.
Magnetic Composite Film Design
Powdertech now offers a binderless magnetic composite material that combines the flexibility and characteristics of a film with the electromagnetic properties of a sintered ferrite.
Our technology uses room temperature aerosol deposition, which enables us to support a broad range of design options without compromising the function of the base substrate. The ferrite composition and depth of the ferrite layer can be specified for deposition onto a range of material types and thicknesses.
The high degree of freedom in design options allows us to deliver a composite film which can be formed into any shape, and optimized for a variety of applications such as electromagnetic shielding and electronic components.
Flexible Composite Ferrite Design Options
Soft Magnetic Composition Options
Mn, Mn-Zn, and Ni-Zn ferrite compositions can be designed with layer thickness ranging from 2 – 15μm.
Hard Magnetic Composition Options
Sr ferrite can be designed with layer thickness ranging from 2 – 15μm.
Metal Substrate
Copper, aluminum, nickel, or other metal compositions can be specified as the base substrate, at up to 10μm substrate thickness.
Resin Substrate
PC, PVC, POM, ABS, PI, or other polymer compositions can be specified as the base substrate, at up to 50μm substrate thickness.
Leverage our expertise to achieve performance in your application.
Powdertech provides specialty ferrite products that are customized to suit specific applications. With an understanding of your technological challenges and performance requirements, we can determine the best approach to meet your needs.
