Sustainable Friction Powder
High Performance Brake Pad Applications
Sustainable Friction Material

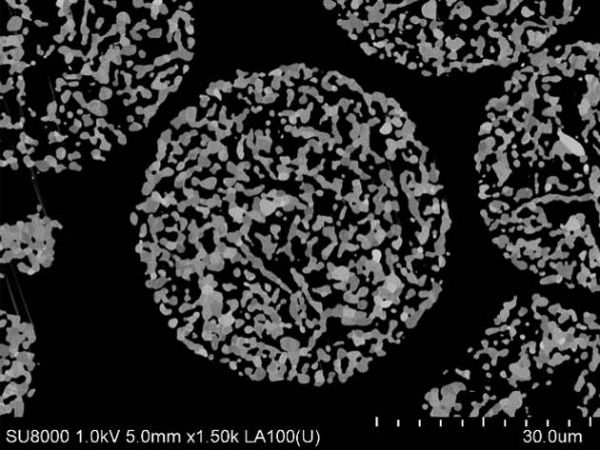

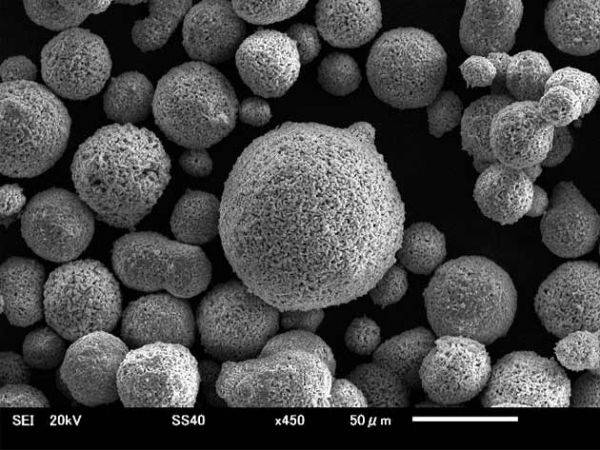

Powdertech introduces patented hematite (Fe2O3) particles, which are spherical in shape with a large particle size and a dense porous structure inside the particles. The hematite is sintered into stable ceramic spheres which are easily compounded with other friction pad materials. Our sustainable friction material is compatible with formulations designed for high performance brake pad applications.
Magnetite (Fe3O4) is commonly used as friction material since it reduces the need for high levels of copper and other metal powders. Hematite (Fe2O3) has been determined to maintain coefficient of friction in high temperature braking applications. Hematite has been shown to give improved brake performance compared to magnetite, and is beneficial for ceramic, hybrid and semi metallic pads.
Hematite (Fe2O3) sintered into stable ceramic spheres which are easily compounded with other environmentally-friendly friction materials
Maintains COF at higher temperatures
Reduces brake pedal fade
Reduces noise
Reduces dust
Special features of Powertech’s Sustainable Friction Powder:
Very fine porous structure
Spherical shape
Controlled powder density
Uniform mixing characteristics in resin
Stable within a wide range of temperatures
Environmentally-friendly
Typical Product Properties
Composition | Average Diameter (Microns) | Pore Volume (mm3/g) | Peak Pore Diameter (Microns) | BET Specific Surface Area (m2/g) | Saturation Magnetization (EMU/g) | Iron (wt%) |
Fe2O3 | 35-50 | 90-180 | 0.2-1.0 | 0.40-0.90 | <20 | >65 |
Contact us to get started
Powdertech provides specialty ferrite products that are customized to suit specific applications. With an understanding of your technological challenges and performance requirements, we can determine the best approach to meet your needs.
